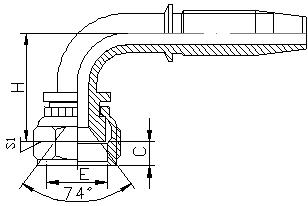

26798


26798(R5)
美制SAE内螺纹74°内锥面
SAE FEMALE 74° CONE SEAT

PA/RT NO.

TH/READ E

HOSE BORE

DIMENSIONS

DN

DASH

C

H

S1

26798D-04-04(R5)

7/16"X20

5

04

8.5

33.5

14

26798D-05-05(R5)

1/2"X20

6

05

9.5

37

14

26798D-06-06(R5)

5/8"X18

8

06

10

39.3

17

26798D-08-08(R5)

3/4"X16

11

08

11

47.5

19

26798D-10-10(R5)

7/8"X14

13

10

11

52.5

24

26798D-12-12(R5)

1.1/16"X14

16

12

13.5

63.5

27

26798D-16-16(R5)

1.5/16"X12

22

16

14.5

70

32

26798D-20-20(R5)W

1.5/8"X12

28

20

15.5

82.5

38

26798D-24-24(R5)W

1.7/8"X12

35

24

18.5

97.5

46

26798D-32-32(R5)W

2.1/2"X12

46

32

24.5

118.8

60

Note: Apply to SAE 100 R5 hose
